The battery-free sensor tag has been a printed-electronics staple demo for years: a printed antenna, an NFC chip, a sensing element, no power source, all of it harvesting the field from the phone or reader that interrogates it. What has changed in 2026 is that the demonstrations have found a customer with a compliance problem — and cold-chain logistics is a customer with a very expensive one.
The regulatory picture for temperature-sensitive pharmaceutical distribution has been tightening steadily, and the direction of travel is from shipment-level assurance to package-level evidence. A data logger in the corner of a pallet tells you the pallet stayed cold. It does not tell you about the carton at the edge of the stack that sat against a warm dock door for forty minutes. Once the requirement becomes per-package proof, the economics invert: you need a device cheap enough to attach to every carton and throw away, which rules out anything with a battery and a real-time radio.
What the tag actually does

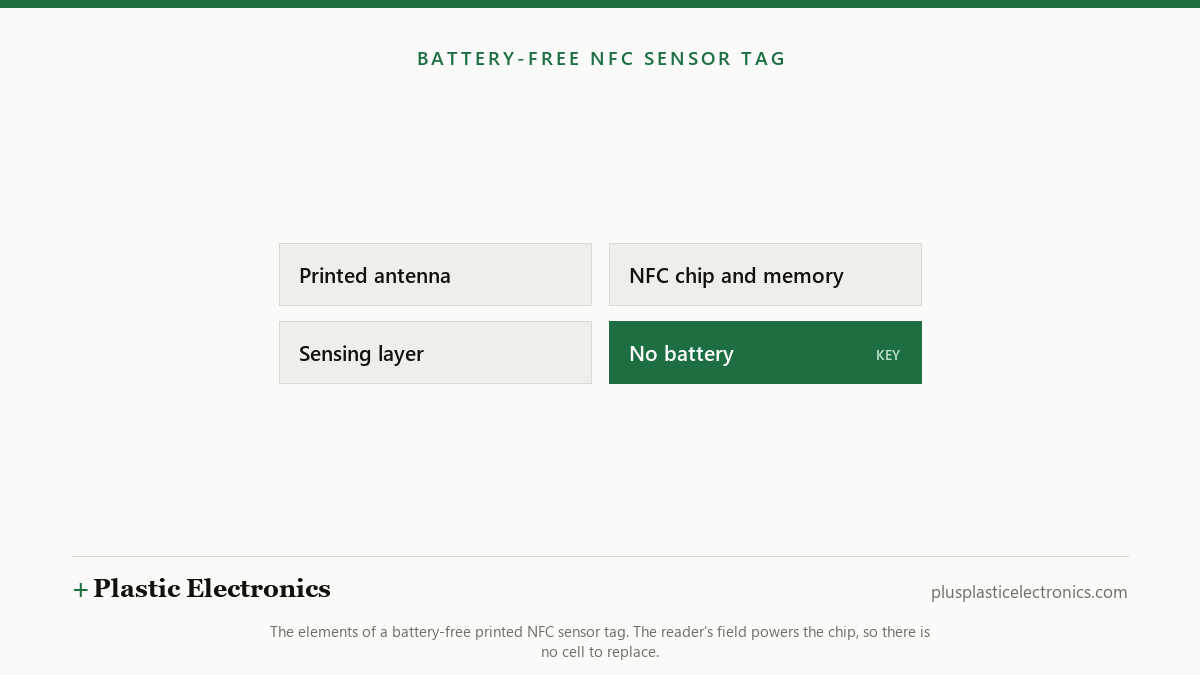

The common architecture is deliberately unambitious. A printed silver or aluminium antenna on a paper or PET label, an NFC chip with a small non-volatile memory and an ADC, and a sensing element — for temperature, most often a printed thermistor or a chemical indicator whose resistance changes irreversibly once a threshold is crossed. The tag has no clock and no power between reads. It cannot log a time series the way a battery-powered logger does. What it can do is answer one question conclusively when someone taps it with a phone: did this package ever go out of range?
For a large share of cold-chain shipments, that single irreversible bit is the whole requirement. Threshold-breach indication is what the disposition decision actually turns on, and getting it per-package rather than per-pallet is a meaningfully better answer than getting a rich time series for one sensor in a hundred. The tags that log properly — with an energy-harvesting front end that banks enough charge to time-stamp events — exist and cost several times more; they are going onto high-value consignments, not onto every carton.
A battery-free tag cannot tell you the whole story of a shipment. It can tell you, for every single package, whether the story ended badly — and that is the part the disposition decision needs.
Putting a size on this category is harder than it should be. The one firm published figure we can point to is 360iResearch’s estimate of the whole battery-free RFID sensor market — $205.00 million in 2024 and $216.21 million in 2025, reaching $320.21 million by 2032 at a 5.73 per cent compound rate. That definition is broad, covering asset tracking, inventory and predictive maintenance as well as environmental monitoring, and it grows at a modest rate that sits awkwardly beside the deployment activity described above.
Other houses using a wider battery-free wireless sensor tag definition put 2025 nearer a billion dollars. The gap between those two numbers is not a disagreement about the market; it is a disagreement about what the category is. No published series we can find breaks out sensor-bearing NFC tags specifically, which is the figure this story actually needs.
Where the cost has landed
Volume pricing for a printed NFC sensor label has fallen a long way, and our reading of supplier guidance puts high-volume threshold-indicator tags in the region of 25 to 35 US cents, against something over a dollar three years ago. Most of that reduction is antenna cost — printed conductor replacing etched aluminium — plus chip prices falling as NFC volume grows for reasons unrelated to sensing. It matters because the comparison is not against a cheaper tag; it is against the cost of discarding a consignment nobody can prove stayed cold.
The honest caveats
Shipment figures for this category are unusually soft. Suppliers rarely separate sensor-bearing NFC tags from plain NFC labels in what they publish, and published market estimates differ by roughly five times depending on where the category boundary is drawn. Anyone quoting a precise market size for battery-free sensor tags is extrapolating harder than the data supports — including, previously, us.
There is also a calibration problem the demos tend to skip. A printed sensing layer's response drifts with humidity, substrate ageing and the mechanical stress of being stuck to a curved carton, and a threshold indicator that trips half a degree early generates false rejections that cost more than the tag saves. Per-lot calibration data and a documented drift envelope are what separate a deployable product from a conference poster — the same distinction we drew on printed methane sensors.
What we're watching
- Read infrastructure — per-package tags are only useful if someone taps them. Handheld and dock-door reader deployment is the practical constraint, not tag supply.
- Food beyond pharma — the volumes in chilled food dwarf pharmaceutical distribution, but the willingness to pay 30 cents a carton is far less established.
- Printed batteries as the middle option — a thin printed cell would buy real time-stamped logging at a fraction of a coin-cell logger's cost. See our coverage of printed batteries reaching production.
