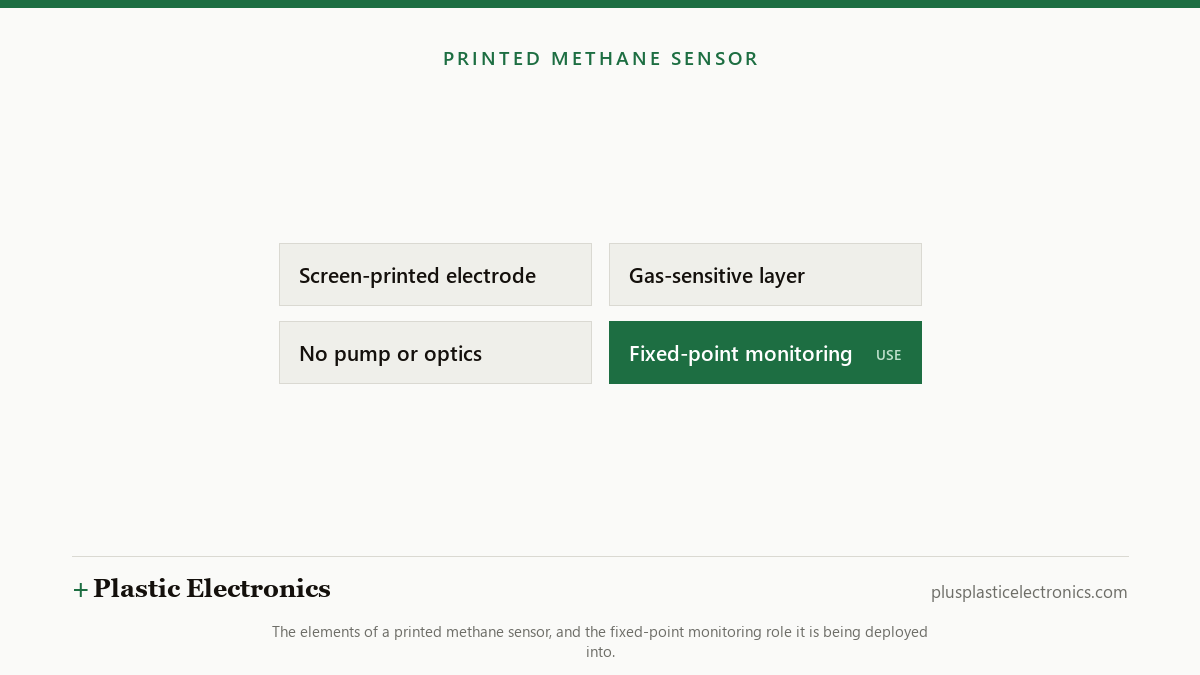

Methane leak detection has long been a two-tier market: expensive, precise optical gas imaging cameras for the sites operators can afford to instrument properly, and not much else for everywhere in between. Printed gas sensors are starting to fill that gap. Screen-printed metal-oxide and conductive-polymer sensing elements — the same class of low-cost printed device that made pressure and strain sensing cheap enough to scale — are now being packaged into disposable or long-life methane monitors aimed at exactly the distributed, low-margin infrastructure that optical systems price out: marginal wells, small landfills, agricultural digesters and long pipeline runs.
Why now, and why printed
Two pressures are pulling printed gas sensing toward the field simultaneously. Regulatory reporting requirements for methane — a far more potent near-term greenhouse gas than CO₂ — have tightened across oil and gas operations and waste facilities in multiple jurisdictions over the past two years, expanding the population of sites that need continuous or frequent monitoring rather than periodic manual surveys. At the same time, printed sensor manufacturing has matured enough — helped along by the same registration and yield gains we tracked in roll-to-roll manufacturing — to make per-unit sensor costs low enough that blanketing a site with dozens of cheap nodes beats a handful of expensive cameras for continuous coverage.
What printed sensors give up — and what they don't need
Optical gas imaging remains far more sensitive and can visualise a leak plume from a distance, which is why it isn't going away at large, well-capitalised sites. Printed metal-oxide and polymer sensors trade that sensitivity and range for point-source detection: a node has to be near the leak to catch it. What they don't need is a technician with a $100,000 camera walking the site on a schedule — a printed node can sit at a wellhead or flange continuously, reporting over the same low-power wireless links already used in agricultural and industrial IoT, and be replaced for a fraction of a single camera survey's cost.
Optical imaging tells you where the plume is. Printed sensors tell you it's happening at 3 a.m. on a Tuesday, at a site nobody was scheduled to visit for another month.
The honest caveats
Printed gas sensors have real limitations that keep this a complementary technology rather than a replacement: cross-sensitivity to humidity and other hydrocarbons remains a calibration headache, drift over long deployments requires either periodic recalibration or accepting reduced accuracy, and metal-oxide elements typically need a heater element that adds power draw unwelcome in battery-only field nodes. None of this rules out the application — leak detection needs a threshold alarm, not laboratory-grade quantification — but vendors overselling printed sensors as optical-camera replacements are selling past what the physics supports.
What we're watching
- Low-power heater designs — the sensor element that cuts heater duty cycle without losing sensitivity wins the battery-life argument that decides field viability.
- Regulatory reporting formats — as jurisdictions formalise how continuous monitoring data must be reported, sensor vendors that ship compliant data pipelines out of the box will out-compete raw hardware plays.
- Multi-gas printed arrays — a single node reading methane plus a cross-sensitivity gas would resolve the biggest accuracy complaint against printed sensing today.
