Of the industry's long-promised components, the printed battery has been the longest-suffering. Two decades of conference papers promised batteries you could print, bend and laminate into anything — followed by two decades of lithium coin cells quietly winning every design-in because they were cheaper, denser and already certified. The story finally turned, and it turned where thinness is not a preference but a requirement: the disposable medical skin patch.
Industry research now describes skin patches using printed batteries as "already a commercial reality" — and the numbers agree. The flexible, printed and thin-film battery market is tracking compound growth of roughly 28% through the decade, from a base of about half a billion dollars this mid-decade toward projections in the $1.4–2.2 billion range by the early 2030s. Separate tracking of batteries for skin patches alone — a broader category including thin cells of all types — puts that slice at $2.48 billion in 2024, heading for $5.20 billion by 2030.
Why the patch, why now
A cardiac-monitoring or temperature-sensing patch worn for 7–14 days has a brutal component checklist: thin enough to conform and be forgotten, safe enough to sleep in, cheap enough to be disposable, and energetic enough to run sensing plus radio for the wear duration. Coin cells fail the first test — literally protrude from it. Rigid pouch cells fail comfort. The printed battery — a laminate of zinc-carbon or lithium chemistry deposited in flexible layers, under a millimetre thick — is the only technology that ticks every box at a disposable price point.
What the patch taught the battery
The medical patch market did something ten years of conference demos could not: it gave printed-battery makers volume, revenue and — most valuable — field-failure data. Production experience at disposable scale forced the chemistry and process kinks out in the way only real shipments can. Zinc-based printed chemistries, which once looked like a compromise against lithium's energy density, turned out to be the right answer for a device worn on skin: lower energy density is acceptable when the duty cycle is microwatts, and a chemistry with a friendlier safety story simplifies medical certification.
That maturation now supports the second wave of design-ins we track: smart packaging and logistics labels where a printed cell powers a display or sensor for the package's life; cosmetic patches delivering sensing or actuation in beauty products; and building sensors harvesting ambient energy by day and leaning on thin cells overnight — the indoor-PV pairing described in our OPV roundup.
The honest caveats

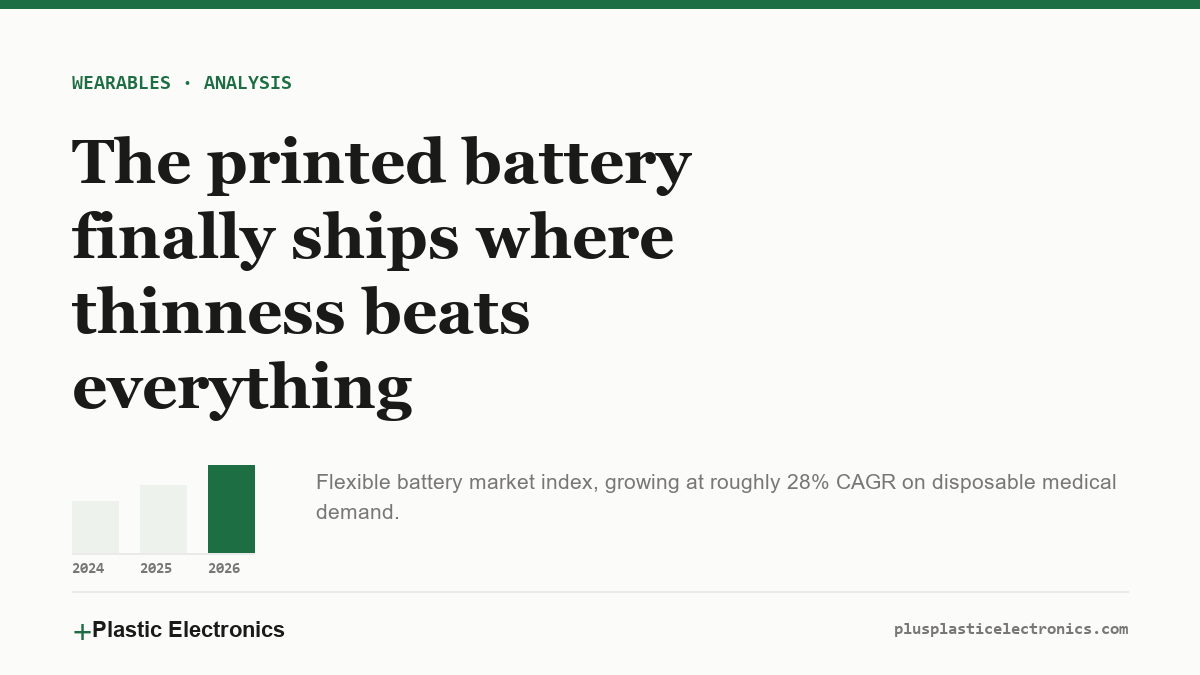

Printed batteries still lose every fight where energy density is the metric. A coin cell holds multiples of the energy at a fraction of the cost; a pouch cell dwarfs both. The addressable market is exactly the set of applications where conformality and thinness dominate the spec sheet, and that set — though growing at 28% — remains a niche of the battery industry. Note also the forecast spread in Fig. 1: houses disagreeing on 2030 sizing by a factor of two is normal for a market being defined (see our forecast-comparison piece for the full method). Treat direction as fact, magnitude as estimate.
The printed battery didn't beat lithium. It found the one customer for whom "thin and disposable" outranks "energy dense" — and that customer buys by the million.
What we're watching
- Multi-day wear patches with radios — every additional day of wear time demanded by clinical protocols is a direct brief for higher-energy printed chemistries.
- Smart-label volume — retail logistics remains the sleeper application that could out-scale medical.
- Harvester-plus-cell modules — the printed battery paired with indoor photovoltaics as a single laminated power subsystem; whoever productises that pairing first owns a category.
