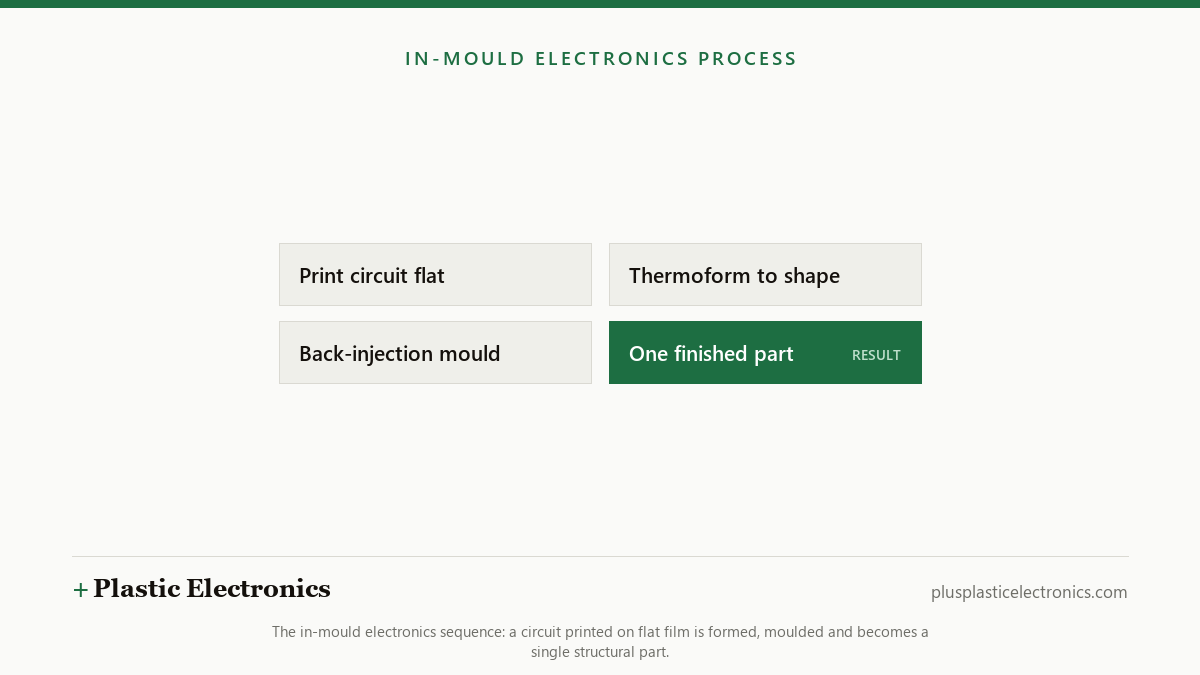

In-mould electronics has spent a decade as the technology every automotive interior concept shows and no volume programme buys. The pitch has never been the problem. Print a conductive circuit and capacitive touch electrodes onto a flat polycarbonate film, thermoform the film into a three-dimensional shape, then back-injection-mould it into structural plastic, and a control panel that previously took a printed circuit board, a wiring harness, a light guide, a bezel and a dozen fasteners becomes one part that comes out of one tool.
The saving is not marginal. Weight drops by a large fraction, assembly steps collapse, and the finished surface is a continuous piece of plastic with no seams for dirt to collect in — which is why the technology keeps appearing on door trim, overhead consoles, seat controls and steering-wheel switch packs in concept builds. What has kept it out of production is the step in the middle.
Forming yield was always the gate
Printing silver ink on flat film is a solved problem. Stretching that printed film over a three-dimensional form, without cracking the conductor or shifting the electrode geometry enough to detune a capacitive sensor, is not. A part with 40 per cent elongation at the corners puts the ink through a strain regime that ordinary screen-printed silver simply does not survive, and a hairline crack that passes a continuity test can still fail a thermal-cycling qualification two years later.
The improvement in that curve comes from three places at once. Formable silver ink chemistries — flake systems in elastomeric binders rather than rigid thermoset ones — now hold conductivity through the strain levels typical automotive geometries demand. Circuit layout has adapted, routing conductors along low-strain paths and putting meander or serpentine geometry where elongation is unavoidable, the same trick that makes stretchable circuits survive skin movement. And forming simulation has improved enough that the strain map is known before the tool is cut, rather than discovered after.
Why tier ones are quoting it now
A first-pass forming yield in the high eighties changes the business case rather than the engineering one. Below roughly 80 per cent, scrap eats the part-count saving and IME loses to a conventional panel on landed cost even before you account for the risk premium a programme manager attaches to an unproven process. Above it, the single-part economics start to dominate, and the conversation moves from the advanced-engineering group to the purchasing one.
In-mould electronics was never held up by whether you could print the circuit. It was held up by whether the circuit survived being bent into the shape of a car door.
The honest caveats
Forming yield is the number that decides whether in-mould electronics is a production process or a demonstration, and it is also the number nobody publishes. Suppliers describe it selectively in technical presentations, and that population is biased toward the groups doing well. We are not able to put a defensible figure on it, and readers should treat any single published yield claim as a best case rather than an industry average.
Repairability is the other unresolved objection, and it is a real one. The entire value of IME comes from making the electronics inseparable from the structural part; the consequence is that a single failed touch electrode condemns the whole moulding. For a trim panel that is an acceptable warranty exposure. For a safety-relevant control it is a harder argument, and it is why the early production design-ins cluster on comfort and convenience functions rather than anything the vehicle needs to move.
What we're watching
- Qualification data — thermal-cycling and humidity results at automotive grade, on formed parts rather than flat coupons, are the evidence that decides whether the yield curve translates into design wins.
- Ink cost at volume — formable silver systems carry a premium over standard screen inks; whether that gap closes matters once part counts reach hundreds of thousands.
- Appliances and white goods — lower qualification burden, similar part-count savings. If IME goes volume anywhere first, it may not be a car.
