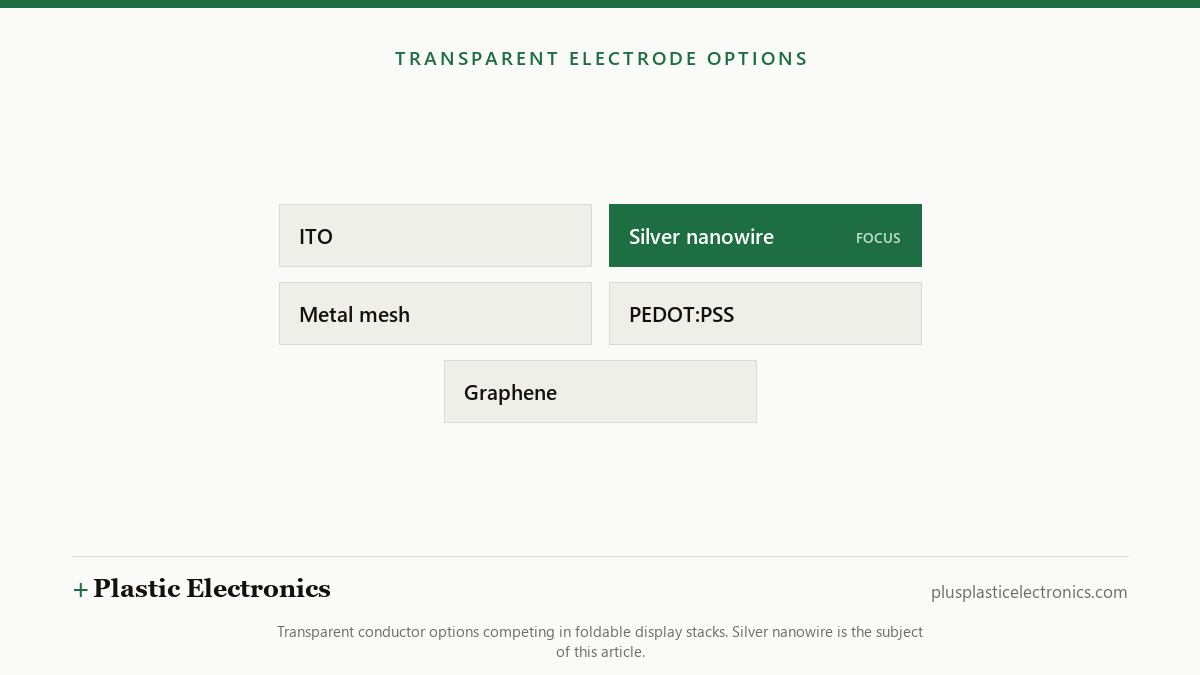

Indium tin oxide has been the default transparent conductor for displays for three decades, and it has never been a good fit for a screen that folds. ITO is a ceramic: it sputters onto glass or plastic cleanly and conducts well, but its crystal lattice cracks after a few thousand tight-radius bends, which is exactly the stress a foldable phone's hinge line imposes tens of thousands of times over a product's life. Silver nanowire networks — random meshes of metal nanowires coated from ink rather than sputtered as a solid film — have been the leading ITO alternative in lab demonstrations for years. What's changed through 2026 is that nanowire electrode sheet resistance and haze have moved from "good enough for a prototype" to numbers panel makers are willing to put into a qualified bill of materials.
Closing the conductivity gap
The historical knock against silver nanowire films was a trade-off panel engineers hated: push nanowire density up for lower sheet resistance and haze rises, scattering light and dulling the display underneath. Formulation work on nanowire aspect ratio and junction welding — plus better post-print sintering — has pushed that trade-off curve outward, and several ink suppliers are now quoting sub-30 ohms-per-square films at under 1.5% haze, a combination that was a research-paper result two years ago and is now a shipping specification. That puts nanowire electrodes within range of ITO's typical 10–30 ohm/sq performance on rigid glass, while retaining the mechanical compliance ITO cannot match, a dynamic we first flagged when tracking the broader silver ink market earlier this year.
Printing, not sputtering
The deeper shift is process, not just material. ITO deposition is a vacuum sputtering step — capital-intensive, batch-oriented, and largely indifferent to whether the tool is coating one panel or a thousand. Silver nanowire ink can go down by slot-die coating or inkjet printing on the same roll-to-roll lines already used for other printed layers, at ambient or near-ambient conditions. That doesn't just cut capital cost; it lets electrode patterning happen in the same production flow as other printed functional layers, rather than requiring a detour through a sputtering chamber. For panel makers already running roll-to-roll lines for other layers, adding a nanowire electrode step is a far smaller lift than standing up ITO capacity from scratch.
ITO never had to bend. Every foldable phone shipped since 2019 has been quietly working around that fact — nanowire ink is the first electrode material that doesn't ask the display to compromise.
The honest caveats
Silver nanowire films are not a drop-in replacement everywhere. Junction resistance between overlapping nanowires remains higher than a continuous ITO film's bulk conductivity, which matters for large-area, high-current applications more than for a phone-sized touch panel. Nanowire surfaces are also rougher than sputtered ITO at the same optical performance, which can complicate the deposition of thin encapsulation or overcoat layers above the electrode. And silver's cost sensitivity to the broader metals market — the same dynamic we've tracked in the wider conductive ink space — means nanowire ink pricing is not immune to silver price swings the way ITO's indium supply chain has its own, separate exposure.
What we're watching
- Copper nanowire formulations — cheaper than silver and improving fast on the oxidation-barrier coatings that have historically limited copper's shelf life in ink form.
- Overcoat and planarization layers — the coating chemistry that tames nanowire surface roughness without adding a haze penalty decides how far up the display stack nanowire electrodes can move.
- Panel-maker qualification disclosures — the number of foldable models shipping with a nanowire rather than ITO or metal-mesh electrode is the real adoption signal, more than lab conductivity numbers.
